80-96 Bronco & F-150 Double Swing Kits For Unequal Length Beamsu
We were the 1st company in the industry back in 2009 to offer 80-96 Bronco Double Swing Steering.
These are designed for stock or extended TTB's that use the factory pivot brackets or factory geometry pivot brackets & Unequal length beam 2wd F-150s (Contact us if you need a set for drop brackets) This kit improves your steering geometry dramatically by eliminating the bump steer which also helps reduce tire wear and stress on moving parts, such as ball joints, wheel bearings, steering box and pump do to the slower steering input.

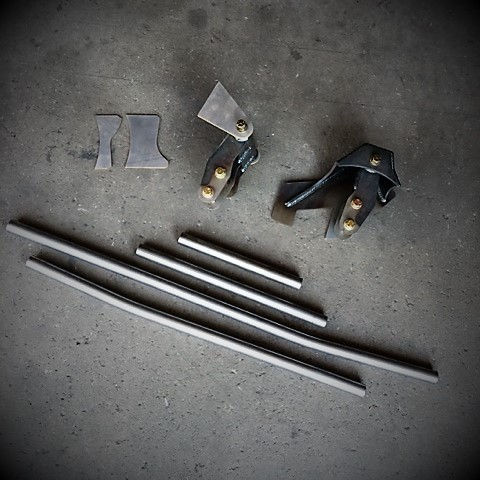

Basic Steering Swinger Kit Package w/7/8-KMX Hiems
Includes:
- Driver Side Steering Swinger w/Bushings
- Driver Side Swinger Frame Mount
- Passenger Side Steering Swinger w/Bushings
- Passenger Side Swinger Frame Mount
- 7/8" KMX Series Hiems w/Jam Nuts & High Misalignment Spacers
- Pitman Arm Kit (Utilized your factory pitman arm to build off)
- Grade 8 Hardware
(Optional Tie Rod Tubes w/weld In Bungs Can Be Added)

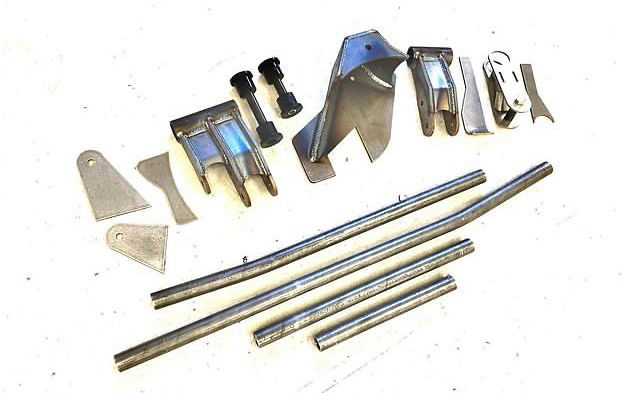

Steering Swinger Kit Package w/7/8-Race Style Hiems
Includes:
- Driver Side Steering Swinger w/Bushings
- Driver Side Swinger Frame Mount
- Passenger Side Steering Swinger w/Bushings
- Passenger Side Swinger Frame Mount
- Weld In Threaded Bungs (Optional Tie-Rod Tubes w/Weld In Bungs Can Be Added)
- 7/8" Race Series Hiems w/Jam Nuts & High Misalignment Spacers
- Grade 8 Hardware
FACTS: You can set up the swinger stagger by moving the passenger side swinger to the rear of the truck if you would like to run strait tie-rods, however because the stagger will be different from the beam pivot stagger you will actually create more bump steer. To eliminate bump steer we highly recommend setting the passenger swinger to our specs as it has been proven to eliminate bump steer which is the whole point of this steering kit.
