Ford Ranger 4wd D-44 Conversion Kits

Ford Ranger 4wd D-44 Conversion Kits

Ford Ranger 4wd D-44 conversion. What seperates our of other conversion kits? Strength, more suspension ground clearance because you still use your factory beam pivots, better suspension geometry, more usable wheel travel & allows for crossover steering unlike the drop down bracket conversions. End result is 4" Per Side so you will need to run fiberglass fenders. Lead times are around 6-8 weeks on these kits. When bringing or sending in your cores MAKE SURE they are clean INSIDE & OUT or you WILL be charged a $150.00 cleaning fee and will be delayed an aditional 2-3 weeks on your order due to having to try to find time to clean them.







Standard Conversion D-44's Package #1 (TTB's Only NO Radius Arms)

 Includes:

  • Basic 4" per side D-44 TTBs modified to bolt directly into the factory pivot brackets (Cores in advance is required!)
  • Standard pivot plating
  • Utilizes your stock bushings (We do not include bushings)

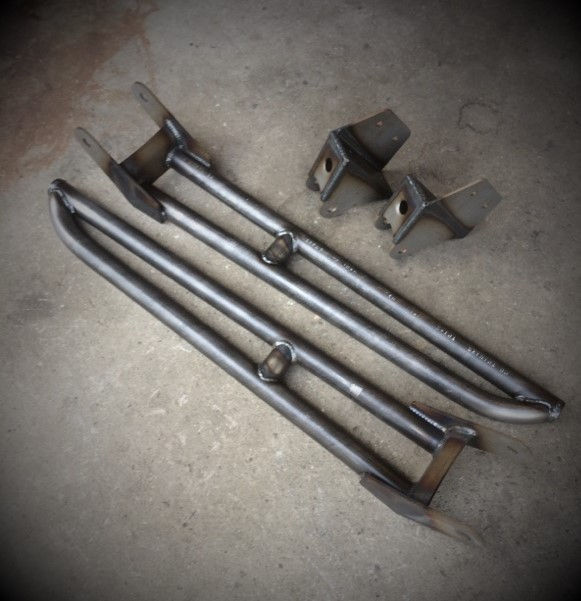

Package #2 (With HGC Tube Radius Arms)

 Includes:

  • 4" per side D-44 TTBs modified to bolt directly into the factory pivot brackets (Cores in advance is required!)
  • Standard pivot plating
  • HGC Tube radius arms w/WIY beam to tadius arm tab kit
  • Radius arm pivot brackets
  • Two 1 1/4" hiems w/Jam nuts & misalignment spacers
  • Utilizes your stock bushings (We do not include bushings)



Package #3 (With HGC Boxed Radius Arms)

 Includes:

  • 4" per side D-44 TTBs modified to bolt directly into the factory pivot brackets (Cores in advance is required!)
  • Standard plating
  • HGC fully boxed radius arms
  • Radius arm pivot brackets
  • Two 1 1/4" hiems w/Jam nuts & misalignment spacers
  • Utilizes your stock bushings (We do not include bushings)



Package #4 Bells & Whistles Race Kit+ Additional Length & Travel  (With HGC Tube Radius Arms & Extended to 5"-8" Per Side)

 Includes:

  • Extended to 5"-8" per side D-44 TTBs modified to bolt directly into the factory pivot brackets (Cores in advance is required!)
  • Standard plating
  • 4340 Axles
  • HGC Tube HGC radius arms
  • Radius arm pivot brackets
  • Two 1 1/4" hiems w/Jam nuts & misalignment spacers
  •  1" uniball pivots w/uniballs & spacers





Package #5 Bells & Whistles Race Kit+ Additional Length & Travel(With HGC Boxed Radius Arms & Extended to 5"-8" Per Side)

 Includes:

  • Extended to 5"-8" per side D-44 TTBs modified to bolt directly into the factory pivot brackets (Cores in advance is required!)
  • Standard plating  + Extended & Plated
  • Front Truss
  • Lower Truss/Skid Plate
  • 4340 Axles
  • HGC Boxed radius arms
  • Radius arm pivot brackets
  • Two 1 1/4" hiems w/Jam nuts & misalignment spacers
  • 1" uniball pivots w/uniballs & spacers











  • Terms & Conditions

    Terms & conditions: All products are custom built. There are NO refunds or exchanges at anytime! We highly recomend adding insured shipping. Contact us to add it and we will bill you for it seperatly. If not all products shipped will go direct to your nearest FedEx pick up location. If not picked up it will get returned to us  you will have to re pay for shipping. No exeptions!   Once your products ship they are 100% your responsibilty. If lost or stolen thats on you if you dont choose the shipping insurance option. We will not be held responsible if your packages get lost or stolen...Or to simplify things you can pick it up in person at our Utah location. By placing your order you agree to our terms!

$1,400.00 Regular Price
$1,200.00Sale Price
